Netto Price (EXWORKS Bucharest): 8.290 €
Orders are stock limited!
FEDEX Express Shipping. Par Avion Fast Delivery*.
Weight: 9,606 kg
Size: 530 x 475 x 260 mm x mm x mm
UPC: 193133294306
GTIN: 04057875199731
The basic package can be used to carry out tests on the ISO 7638 port.

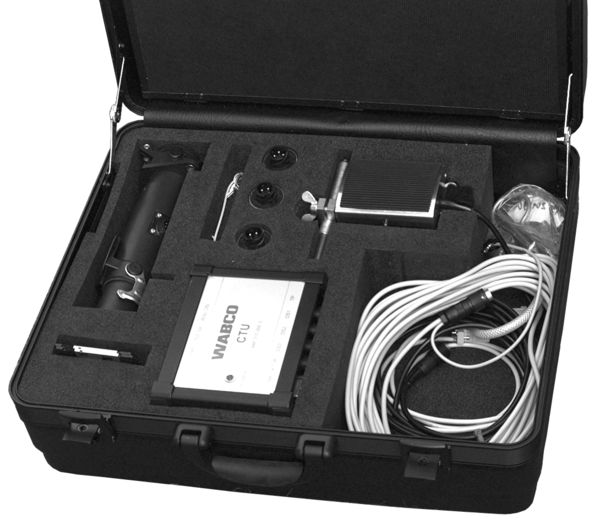

The basic package enables the electronic verification of the towing vehicle/trailer ISO 7638 port (EBS socket) as well as a towing vehicle/trailer simulation. The basic package is accommodated in an accessories case and includes the basic electronic equipment for the performance and evaluation of investigations. The basic package also includes components which are required in both the towing vehicle and the trailer (pressure sensor for the least favourably positioned wheel brake cylinder including a pressure sensor cable as well as connector element for the wheel brake cylinder and hose to the red coupling head).
Contents:
Item Designation
1 “Test connection to pressure sensor adapter” hose
2 Pressure sensor adapter
3 “CTU to pressure sensor adapter” cable
4 CTU
5 “Red coupling head” hose
6 “ISO 7638 adapter to ECU” cable
7 Insertion adapter
8a/8b Alternatively: 8a USB RS232 adapter (+ USB stick)/
8b data transmission cable CTU to PC
