All pictures shown are for illustration purpose only.
Actual product may vary due to product enhancement.
Netto Price (EXWORKS Bucharest): 391 € 336 €
FEDEX Express Shipping. Par Avion Fast Delivery*.

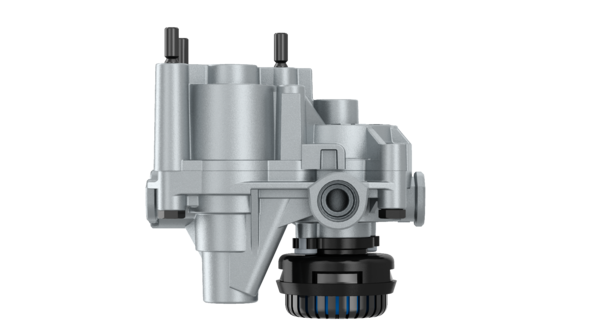

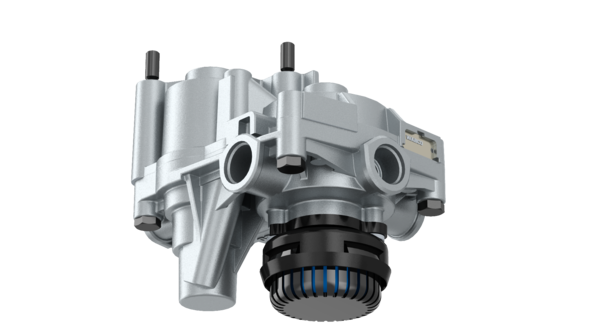

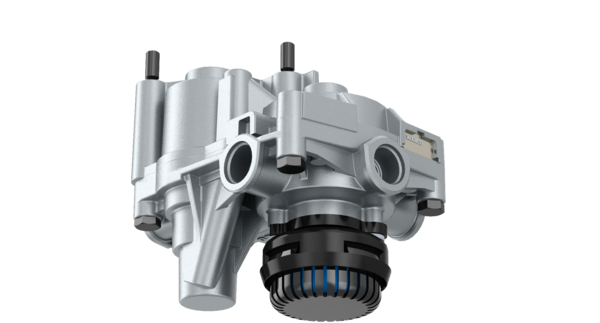

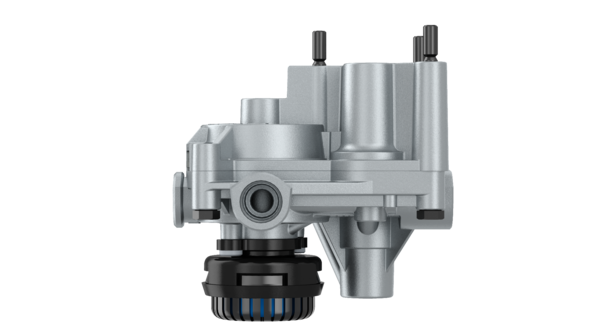

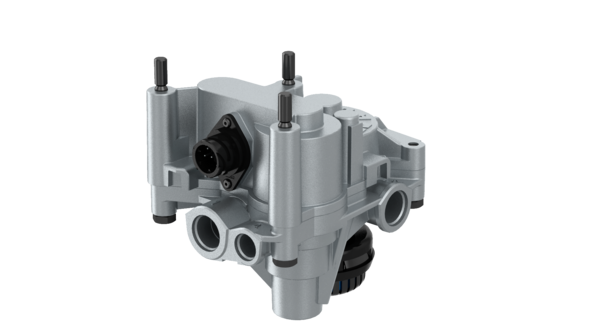

The WABCO 4802020040 is a genuine EBS (Electronic Braking System) Proportional Relay Valve of premium original quality. It precisely controls the air pressure within the braking system of heavy-duty commercial vehicles (such as trucks, buses, and trailers), ensuring rapid response times and optimal braking performance for electronically controlled systems.
| Part Number | 4802020040 / UPC Code: 193133487807 |
| Product Type | EBS Proportional Relay Valve |
| Max. Operating Pressure | 10.2 bar |
| Electrical Connection | Bayonet (DIN 72585) / Rated current: 1400 mA |
| Port Threads | Port 1, 21, 22: M22 x 1.5 Port 3: M16 x 1.5 |
| Weight & Dimensions | 2.02 kg / 161 x 123 x 165 mm |
| Manufacturer | Reference Code(s) |
|---|---|
| DAF / PACCAR | 1315686, 41032230, 0375215, 0054296944, 1505288, 1505280 |
| MERCEDES-BENZ / EVOBUS | A0054291244, A0054296944, A0044298644, 0054291244, 361623 |
| IVECO / IRISBUS | 41032230, 0054296944, 0375215, 361623 |
| MAN | N1011063689 |
| SCANIA | 1935135 |
| DAEWOO | 3454403440, P3454403440 |
