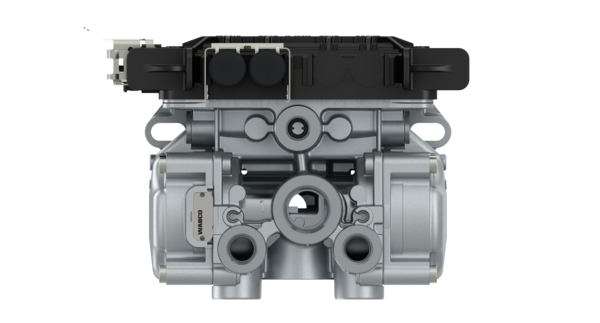

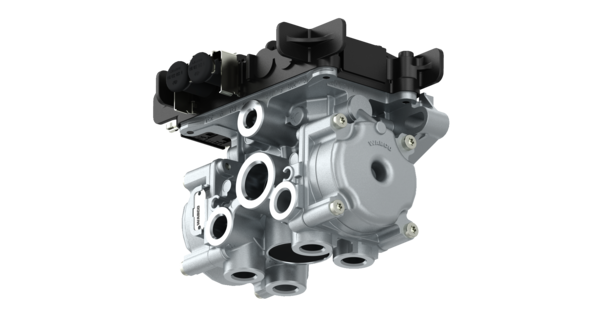

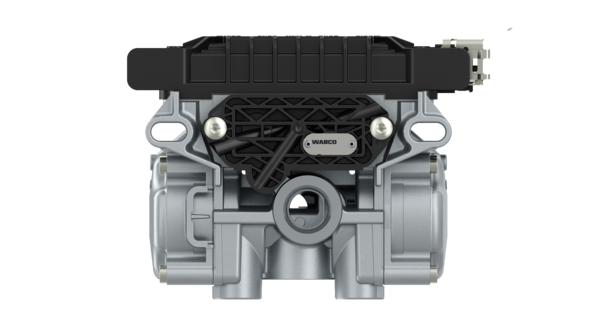

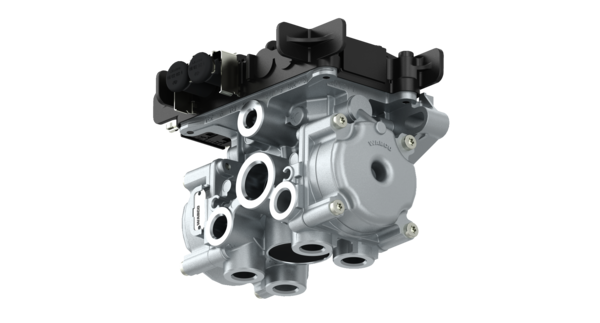

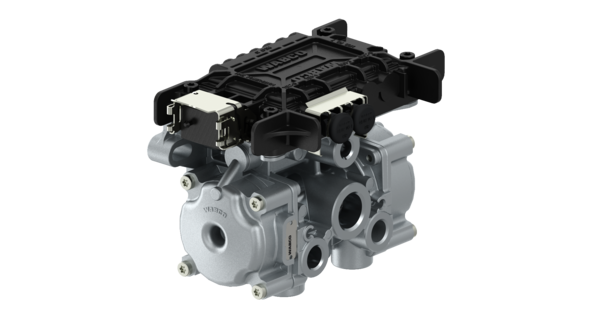

The WABCO Trailer ABS ECU Valve is a crucial component in maintaining stability and control for heavy-duty trailers. Designed in a 2S/2M configuration, this unit integrates an electronic control module with an advanced valve system to manage brake pressure efficiently. Trailer ABS systems are essential for preventing wheel lock-up, especially in emergency braking situations or on slippery roads. Without ABS, a trailer’s wheels can skid, leading to a dangerous loss of control. The WABCO 4005001020 ensures that braking force is applied evenly, reducing wear on tires and brake components while also improving stopping distances.
Features & Benefits for Trailer ABS ECU/Valve Assembly – 2S/2M WABCO 4005001020
- 2S/2M configuration for precise brake modulation
- Reduces wheel lock-up for safer braking performance
- Helps extend the lifespan of tires and brake components
- Trusted WABCO design for durability and reliability
Technical Specifications for Trailer ABS ECU/Valve Assembly – 2S/2M WABCO 4005001020:
* Calculated Volume: 4.586 dm³
* Max. operating pressure: 188.5 psi
* Port thread 1: 2x 3/4 – 14 Dry Seal NPTF
* Port thread 21: 3x 3/8 – 18 Dry Seal NPTF
* Port thread 22: 3x 3/8-18 Dry Seal NPTF
* Port thread 3: Flap Exhaust
* Port thread 4: 1/4″ – 18 Dry Seal NPTF
* Protection class: IP 66
* System: 2S/2M
* Temperature range: -40°C to +65°C
* Type: TCS II Standard
* Version: Basic VCS II
* Voltage: 12 V
* Size: 240 x 130 x 147 mm x mm x mm
* UPC: 193133427865
* Weight: 2.239 kg
* Weight: 4,936 lb
OE Codes:
4005001020 / S4005001020
* FREIGHTLINER: TDAS4005001020
* GREAT DANE: 40502932
* HYUNDAI: 10008470
* KENWORTH: S400-500-102-0
* MACK: 6300-4005001020
* MANAC: 22801003
* MANAC: 228-01003
* PETERBILT: S400-500-102-0
* STOUGHTON: 46040401300
* UTILITY TRAILER: MESS4005001020
* UTILITY TRAILER: 3-9350-074
* UTILITY TRAILER: 393500074
* VANGUARD: 1ABS00014
* VANGUARD: 2ABS00014
* VOLVO: TDA-S4005001020
* VOLVO: WAB4005001020
* WABASH: RWW4005001020
