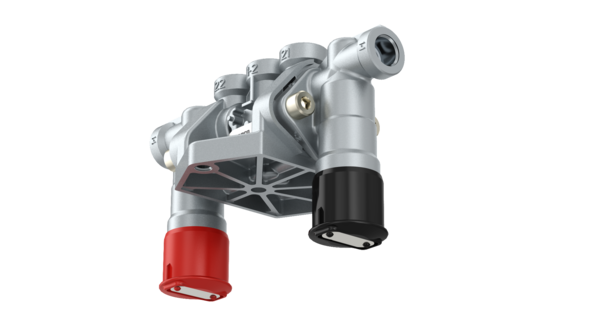

Trailer Release Valve WABCO 9630010520

WABCO Code: 9630010520

OE Codes:

• DAF: 1506449
• HENDRICKSON: 9630010520
• LOHR: 9630010520
• MAN: N2509990158
• OTOKAR: AIF0944
• PACCAR: 0865667
• RENAULT: 5021170427
• SCANIA: 1935580
• SCHMITZ CARGOBULL: 114017
• VOLVO: WA9630010520
• ZORZI: 1013165

Technical Specifications:

• Actuation: Black/Red
• Application: 971 002
• Calculated Volume (dm³): 1.7205
• Distance between holes: 3.39 in
• Max. operating pressure: 123.28 psi
• Mounting: 2x Ø 8.5 mm – Flange
• Port thread 1-1: M16 x 1.5
• Port thread 1-2: M16 x 1.5
• Port thread 2: Ø 0.86 in
• Port thread 21: M16 x 1.5
• Port thread 22: M16 x 1.5
• Port thread 3: Flap Exhaust
• Temperature range: -40°C to +80°C
• Type: Release valve
• Size (mm x mm x mm): 178.5 x 94.5 x 102
• UPC: 193133371946
• Weight (kg): 0.618
• Weight (lb): 1.36
