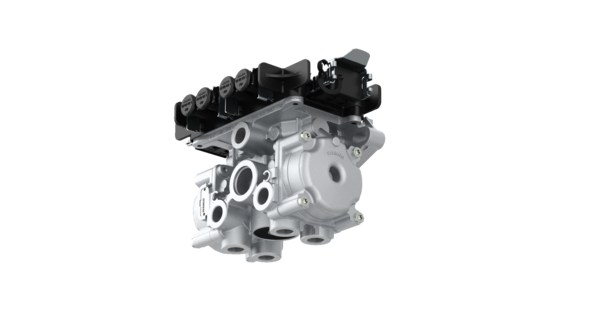

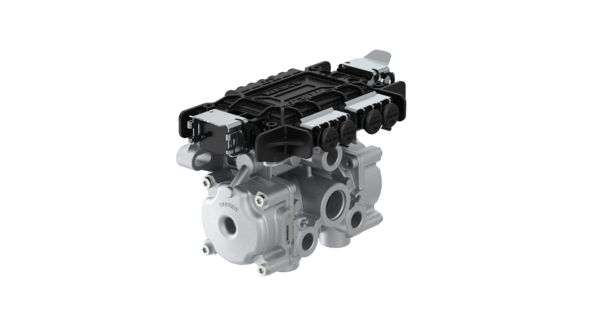

MODULATOR VCS 2 2S2M 4S4M WABCO 4005000880

WABCO Code: 4005000880
ABS System Package

• Calculated Volume (dm³): 4.4542
• Max. operating pressure: 188.5 psi
• Maximum system: 4S/3M … 2S/2M
• Port thread 1: 2x M26 x 1.5
• Port thread 21: 3x M16 x 1.5
• Port thread 22: 3x M16 x 1.5
• Port thread 3: Flap Exhaust
• Port thread 4: M16 x 1.5
• Port threads: M16 x 1.50
• Protection class: IP 66
• Temperature range: -40°C to +65°C
• Type: COM-Variant
• Voltage: 24 V
• Size: 152 x 222 x 132 mm x mm x mm
• UPC: 193133399544
• Weight (kg): 2.372
• Weight (lb): 5.2294
